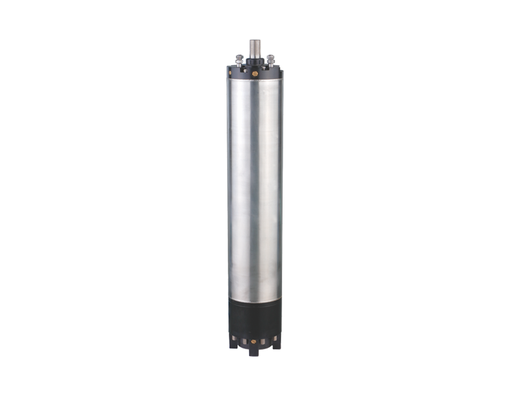

CRI Pumps 8″ (Inch) Water Filled Rewindable Submersible Motors - W8B-550T/D - 55.00 kW

CRI Pumps 8″ (Inch) Water Filled Rewindable Submersible Motors - W8B-550T/D - 55.00 kW

https://www.t4pumps.co.za/web/image/product.template/5493/image_1920?unique=32cb807
(0 review)

C.R.I. “W series” motors are deep well / bore hole rewindable submersible type, pre-filled with water, which acts as coolant and lubricant. These motors are available in three phase power supply and suitable for both normal & high temperature applications. Rotors are supported with bush and thrust bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.


General Specifications


Nominal Diameter8″
Series Water Filled Rewindable Submersible Motors
Power Range kWThree Phase : 37 – 110 kW
Speed2900 rpm
Versions Three Phase : 380V – 415V, 525V, 50Hz
Method of StartingDirect On Line (DOL), Star Delta (SD)
Maximum Down Thrust Load45500N
Type of DutyS1 (Continuous)
Degree of ProtectionIP 68
Class of InsulationY
Max.Temperature of LiquidStandard – 30˚C , High Temperature – 50˚C
Minimum Cooling Flow Along the Motor0.5 m/sec
Starts per Hour12 Times
Available M.O.CType B,S,T


Features


  • High efficiency
  • Water lubricated rewindable motor
  • Corrosion resistant stainless steel motor body
  • Extremely hardwearing and water lubricated bearings
  • Special design for hot water
  • Can be easily dismantled and repaired


Application


  • Water supply
  • Industries
  • Agriculture
  • Commercial buildings
  • Pressure boosting
  • Water transfer
  • Sprinkler and pivot irrigation system
  • Construction & mining De-watering
  • Fountain


8″ Water Filled Motor W8B Data Sheet


R 42,501.00 42501.0 ZAR R 42,501.00 Excl.VAT(Bare Pump only)

R 42,501.00 Excl.VAT(Bare Pump only)

Not Available For Sale

(R 0.00 / Units)

    This combination does not exist.

    • 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
    • A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
    • RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
    • ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
    • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
    • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
    • DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
    • ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS, IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTICE
    Contact Us

    Complete Catalogue:

    Technical Specifications

    Model
    Model W8B-550T/D
    Power Rating
    kW 55.00 kW
    Brand
    Brand CRI
    Others
    Phase Three 400v
