  2. All Products
  3. CRI Pumps I Prez Booster System (VFD & Float Switch Option) - i Prez-11N - 1.10 kW
Default ZA
Price On Request
CRI Pumps I Prez Booster System (VFD & Float Switch Option) - i Prez-11N - 1.10 kW

CRI Pumps I Prez Booster System (VFD & Float Switch Option) - i Prez-11N - 1.10 kW

(0 review)

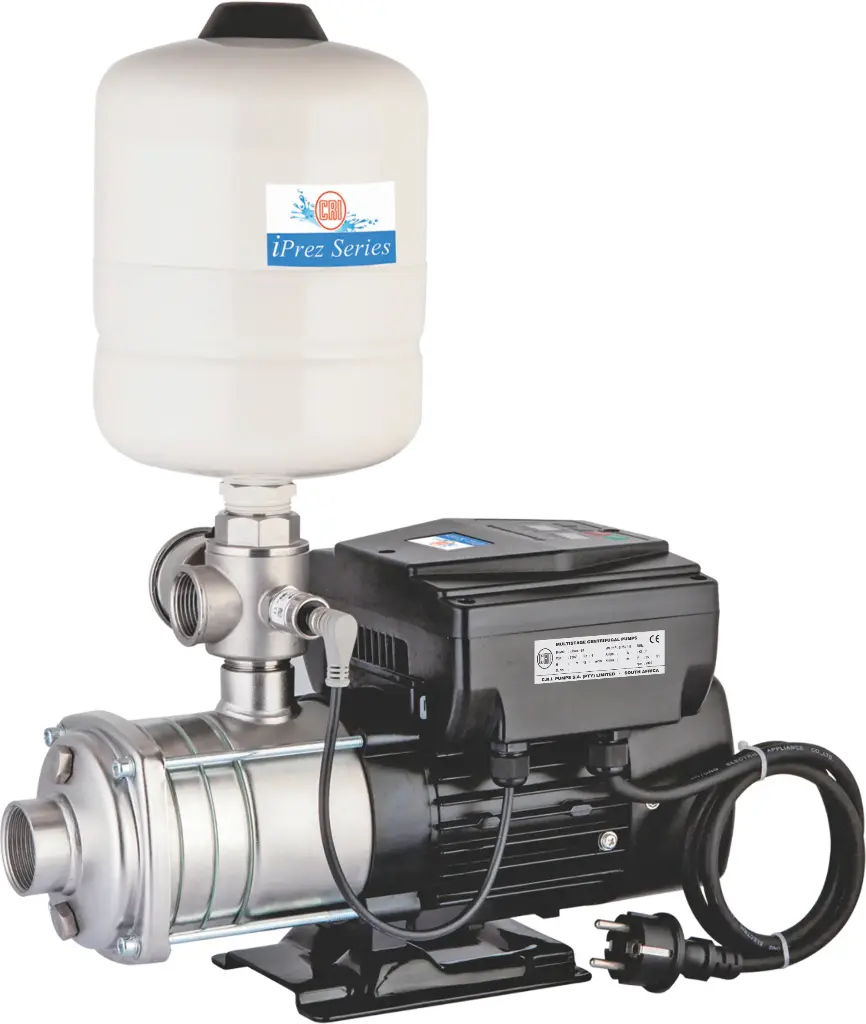

C.R.I i-Prez Series are basically domestic pressure boosting system with built-in variable speed for constant pressure in pipe line. The pressure transducer in this system monitors un-interrupted pressurized water supply at any time. i-Prez also protects the system from dry run, over loading, unbalanced voltages, short circuit etc. The system comprises of Horizontal Multistage Pump, VSD, 5 Way connector with built in NRV, pressure tank, Pressure gauge & pressure transducer.


General Specifications


Power Range(kW)0.75kW – 2.2kW
Speed2900 rpm
VersionsInput voltage : Single Phase 220V Output voltage : Three Phase 220V
DutyS1 Continuous
Degree of ProtectionIP 54
Class of InsulationB/F
Maximum Discharge Upto11 m³/h
Maximum Head Upto 68m
Shaft SealMechanical seal
Max.Liquid Temperature70˚C
Max.Ambient Temperature40˚C
Max.Opearting Pressure9 bar
Flange StandardManufacturer standard
Outlet Size in mmDN25 to DN40


Features


  • High efficiency
  • Stainless steel wetted parts
  • Automatic operation
  • Soft start ensures smooth operation and increase the life of pump set
  • Plug & play type


Application


  • Pressure boosting system
  • Utility water supply in residences, villas and industries
  • Car Washer
  • Gardening


R 0.00 R 0.00 Excl.VAT
(R 0.00 / Units)

    This combination does not exist.

    • 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
    • A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
    • RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
    • ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
    • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
    • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
    • DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
    • ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS, IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTICE
    Contact Us

    Technical Specifications

    Model
    Model i Prez-11N
    Power Rating
    kW 1.10 kW
    Brand
    Brand CRI
