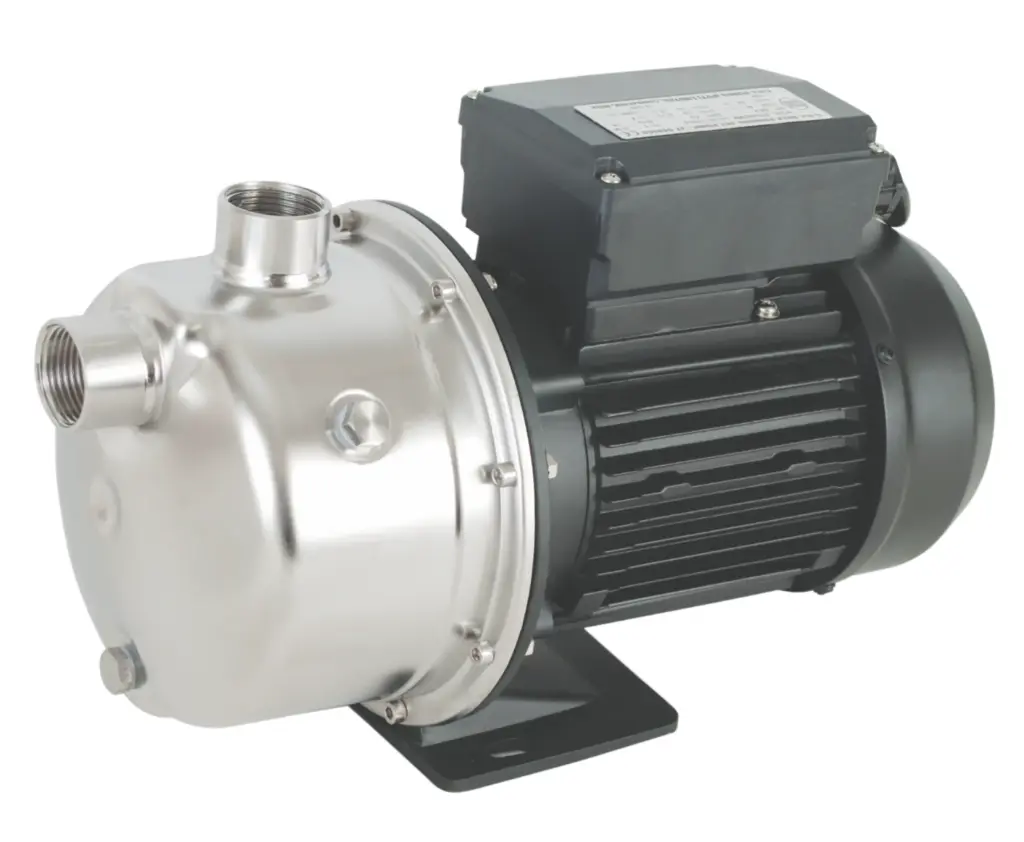

CRI Pumps Self Priming Jet Pump - JTS-3/07M - 0.75 kW

CRI Pumps Self Priming Jet Pump - JTS-3/07M - 0.75 kW

https://www.t4pumps.co.za/web/image/product.template/5532/image_1920?unique=888da0a
(0 review)

C.R.I. JT Series pumps are self-priming type supplied with radial flow impeller for shallow well and sump application.These pumps are available in both single phase and three phase power supply and powered by a totally enclosed fan cooled motor. Jet pump’s casing and ejector unit are designed carefully to give the best hydraulic efficiency and suction lift characteristic. The back pull out design facilitates ease of maintenance. JTS series are offered with fully stainless steel pump portion for hygiene applications. Single phase pumps are thermally protected.


Technical Specifications -JTS


Pump model

JTS-3/07M

Motor Power 0.75 kW
Speed2850 rpm
Versions Single phase – 230V, 50Hz, A.C. Supply
Type of DutyS1 Continuous
Degree of ProtectionIP 54
Class of Insulation    F
Rated Flow rate1.8 m³/h
Rated Head 30 m
Max.Suction LiftUpto 7 m
Shaft SealMechanical seal( Ceramic & Carbon
Max.Liquid Temperature35°C
Max.Ambient Temperature 50°C
Max.Operating Pressure 4.2bar
Suction x Delivery Size inches 1" & 1"


Features


  • High efficiency
  • Compact and rigid construction
  • Back pull out design
  • Single phase pumps are thermally protected


Application


  • Residence
  • Pressure boosting system
  • RO Systems
  • Cooling system
  • Washing systems
  • Utility application in industries and buildings


R 2,032.00 2032.0 ZAR R 2,032.00 Excl.VAT(Bare Pump only)

R 2,032.00 Excl.VAT(Bare Pump only)

Not Available For Sale

(R 0.00 / Units)

    This combination does not exist.

    • 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
    • A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
    • RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
    • ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
    • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
    • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
    • DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
    • ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS, IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTICE
    Contact Us

    Complete Catalogue:

    Technical Specifications

    Model
    Model JTS-3/07M
    Power Rating
    kW 0.75 kW
    Brand
    Brand CRI
    Others
    Phase Single 220v
    Outlet Size 1” x 1”
