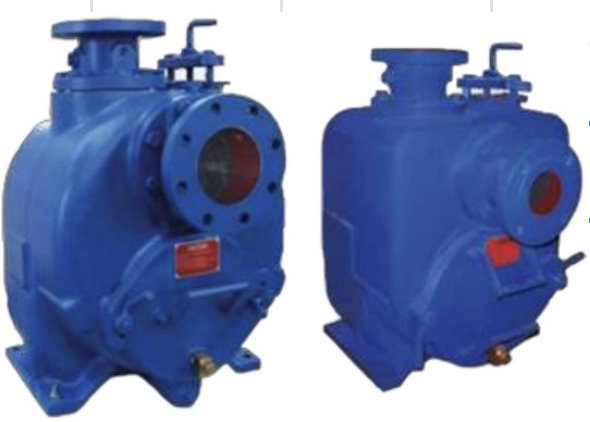

CRI Pumps Sewage Pump - ECN-80D - 650 to 2150

CRI Pumps Sewage Pump - ECN-80D - 650 to 2150

(0 review)

Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E or F class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life. Few models are supplied with fully stainless steel


General Specifications


Maximum Flow upto 180m³/h
Head upto 56m
Speed2900 RPM
Impeller TypeEnclosed / Semi open Impeller
Outlet Size upto 150mm
Powerupto 15kW
Liquid Temperatureupto 40°C
Max Solid Sizeupto 19mm
Shaft Seal Mechanical Seal
Material of Construction (MOC)Cast Iron & Stainless Steel
Bearing LubricationGrease
Maximum Immersion Depth10m
Maximum Working Pressureupto 5bar


Features


  • Wide hydraulic ranges
  • Heavy duty bearings for long life
  • Dual mechanical seal
  • Stainless steel motor body


Application


  • Dewatering
  • Light sewage handling
  • Waste water transfer
  • Pumping water from pit, trench and basin
  • Flood control
R 0.00 R 0.00 Excl.VAT

  • Model
  • Brand
  • Outlet Size
  • RPM
  • Power Range
  • Flow Range
  • Impeller Dia
  • Head Range
  • Solid
Add to cart
Buy now
Add to wishlist
  • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
  • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
  • ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UPDATED WITHOUT PRIOR NOTCE
Contact Us

Technical Specifications

Model
Model ECN-80D
Brand
Brand CRI
Others
Outlet Size 3” x 3”
RPM 650 to 2150
Power Range 1 to 20
Flow Range 2.5 to 106
Impeller Dia 222.25
Head Range 2 to 35
Solid 63.5
