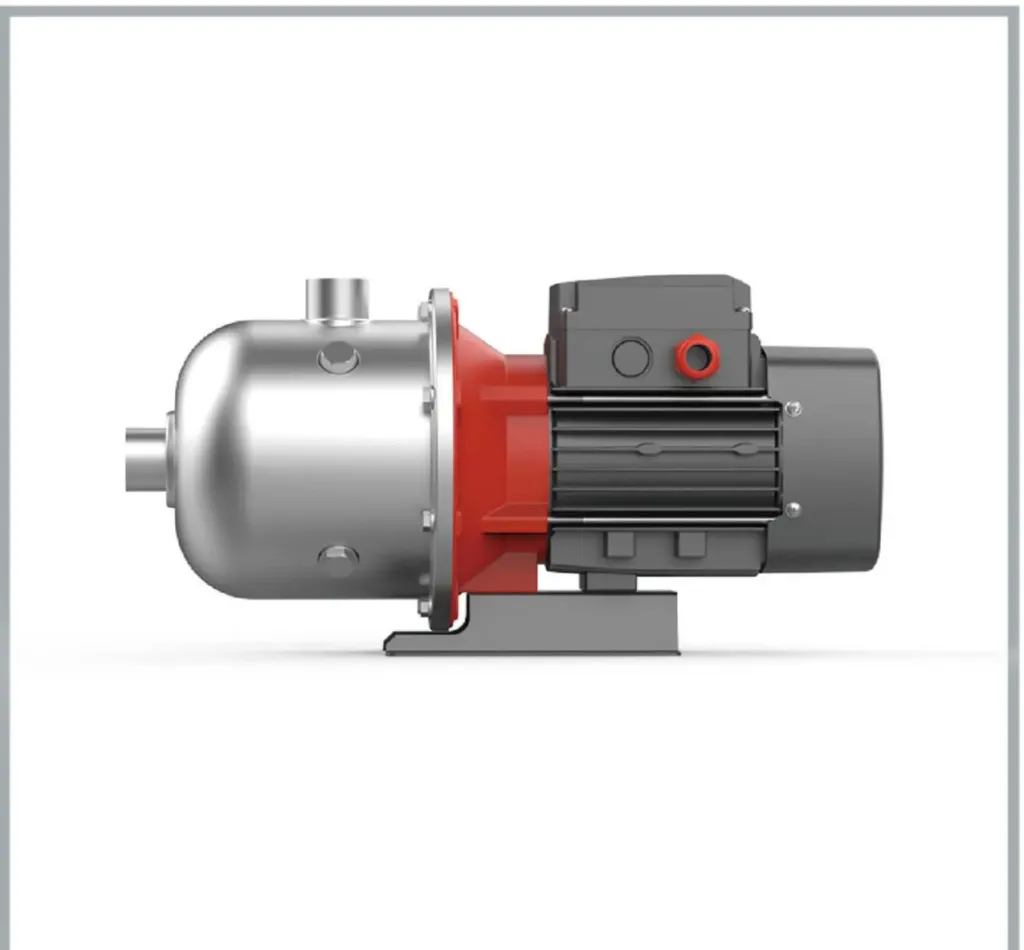

LEO EDHm (1ph) Stainless Steel Horizontal Multistage Pump

(0 review)

LEO EDH Series horizontal multistage pumps are high-performance centrifugal monoblock pumps engineered for applications requiring high pressure, consistent flow, and long-term operational reliability. The pumps feature an end suction and top discharge configuration with precision-engineered radial flow stainless steel impellers, ensuring superior hydraulic efficiency and stable head generation.

Designed for handling clean water and non-aggressive liquids, the EDH series incorporates corrosion-resistant stainless steel wetted components, providing excellent durability, reduced maintenance, and extended service life. The pumps are available in both single-phase and three-phase power supply options, with integrated thermal overload protection in single-phase motors for enhanced operational safety.

General Specification :


ParameterLEO EDH Series
Power Range (kW)0.37 to 2.2
Speed2900 rpm
VersionsSingle phase – 220–240V, 50Hz, A.C. supplyThree phase – 380–415V, 50Hz, A.C. supply
DutyS1 Continuous
Degree of ProtectionIP 54
Class of InsulationB / F
Maximum DischargeUp to 14 m³/h
Maximum HeadUp to 60 m
Shaft SealMechanical seal
Max. Liquid Temperature70°C
Max. Ambient Temperature40°C
Max. Operating Pressure6 bar
Flange StandardManufacturer standard
Outlet Size in mmDN25 to DN40


Features

  • High efficiency and energy-saving design

  • Stainless steel impellers and pump casings

  • Compact horizontal multistage construction

  • Low noise and smooth operation

  • Built-in thermal protection for single-phase motors

  • Long service life with corrosion-resistant materials

Applications

  • Pressure boosting systems

  • Domestic and commercial water supply

  • RO and water treatment systems

  • Industrial washing and cleaning

  • HVAC and utility water circulation

  • Gardening and irrigation systems

R 0.00 R 0.00 Excl.VAT

  • VOLTAGE
  • Pump Model
Add to cart
Buy now
Add to wishlist
  • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
  • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
  • ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UPDATED WITHOUT PRIOR NOTCE
Contact Us

Technical Specifications

Pump Model EDHm2-20 (0.37kW) (R: 00), EDHm2-30 (0.37kW) (R: 00), EDHm2-40 (0.55kW) (R: 00), EDHm2-50 (0.55kW) (R: 00), EDHm2-60 (0.75kW) (R: 00), EDHm4-20 (0.55kW) (R: 00), EDHm4-30 (0.55kW) (R: 00), EDHm4-40 (0.7kW) (R: 00), EDHm4-50 (1.1kW) (R: 00), EDHm4-60 (1.1kW) (R: 00), EDHm15-10 (1.1kW) (R: 00), EDHm15-20 (2.2kW) (R: 00), EDHm20-10 (1.1kW) (R: 00), EDHm20-20 (2.2kW) (R: 00)
VOLTAGE 220V (Single-Phase)
