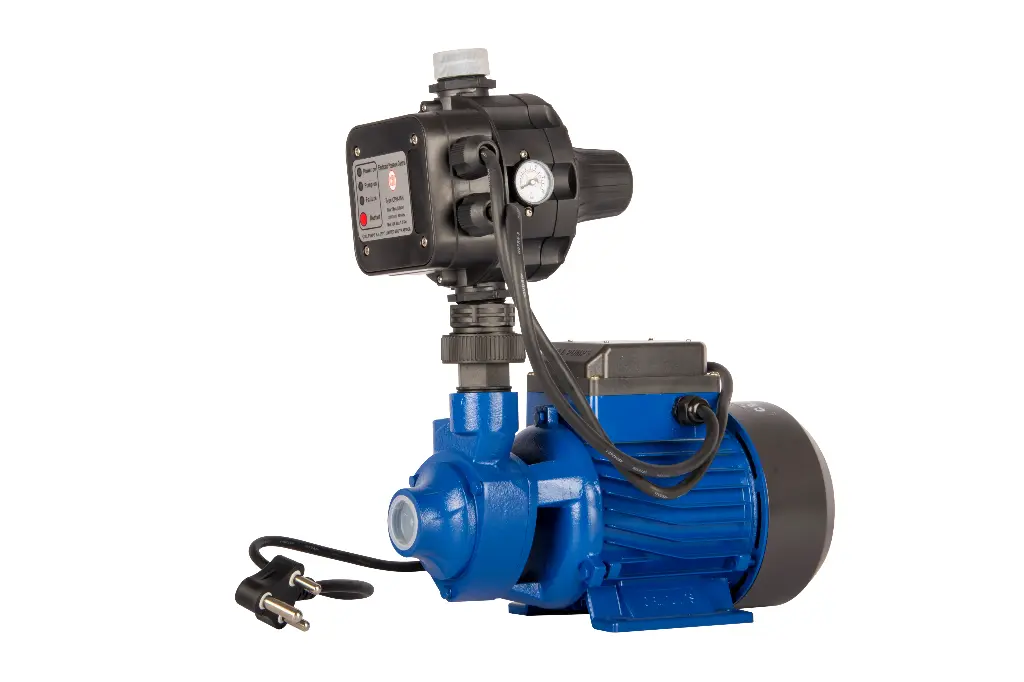

CRI Pumps Peripheral Pump - PEm-7N-QF - 0.75 kW

Name: CRI Pumps Peripheral Pump - PEm-7N-QF - 0.75 kW
Availability: InStock

(0 review)

C.R.I. Peripheral pumps are non selfpriming monoblock type supplied with peripheral impeller for higher head requirement. These pumps are rigid in construction and compact design. It is highly suitable for pumping clear water from sump and shallow wells. It’s brass impeller and high precision mechanical seal ensures durability and stainless steel insert eleminates jamming of impeller over a period kept idle. All single phase pumps are thermally protected.

Technical Specifications

Pump Model	PEM-7N-QF with pre-wired Automatic Pressure switch
Motor Power	0.75 kW
Version	Single phase, 230V, 50Hz, A.C. Supply
Type of Duty	S1 Continuous
Degree of Protection	IP 54
Class of Insulation	B
Rated & Max. Flow Rate	1.5 & 2.8m³/h
Rated & Max.Head	30 & 54m
Max.Suction Lift	6 m
Sealing Type	Mechanical Seal
Max.Liquid Temperature	35°C
Max.Ambient Temperature	40°C
Max.Operating Pressure	5.4 bar
Motor Winding	Copper
Suction x Delivery Size	1 "x 1 "
Carton box contains	1 x Pump & 1 x Pressure switch

Features

Silent operation
Sturdy and compact design
Thermal protection
Automatic ON-OFF operation

Applications

Residential
Garden
Pressure boosting
Landscaping
Sprinkler systems
Fountains
Domestic RO systems

Download catalogue Peripheral Pump

Download catalogue complete range

Brand
- CRI
Model
- PEm-7N-QF
kW
- 0.75 kW
Phase
- Single 220v
Outlet Size
- 1” x 1”

Add to wishlist

More Information

ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UPDATED WITHOUT PRIOR NOTCE

Technical Specifications

Model
Model	PEm-7N-QF

Power Rating
kW	0.75 kW

Brand
Brand	CRI

Others
Phase	Single 220v
Outlet Size	1” x 1”
